CloudEvent Player

A developer tool for testing and debugging CloudEvents in distributed systems.

CloudEvent Player Logo

What is CloudEvent Player?

CloudEvent Player is a lightweight, browser-based tool designed to help developers test, generate, and monitor CloudEvents in real-time. It combines an event publisher, subscriber, and visual inspector in a single application.

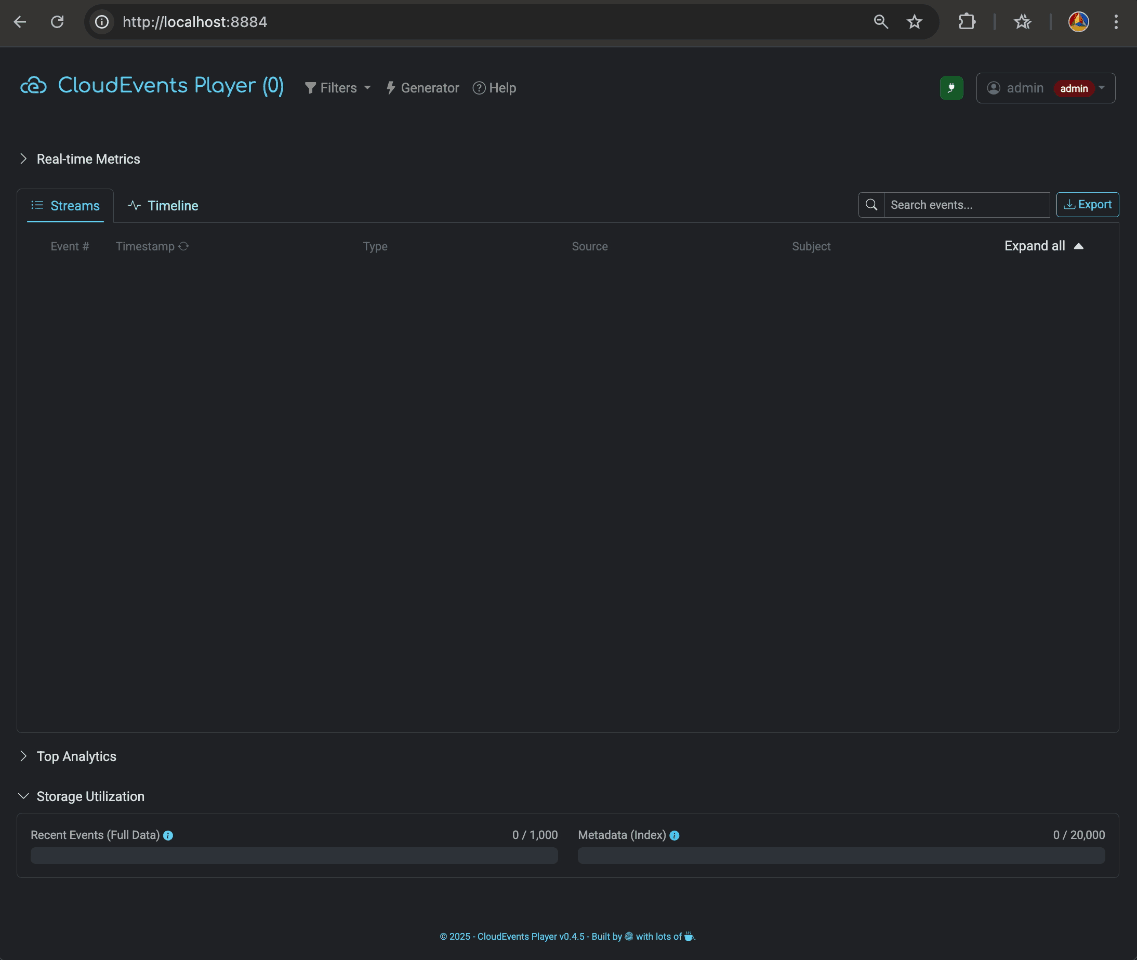

CloudEvent Player Demo

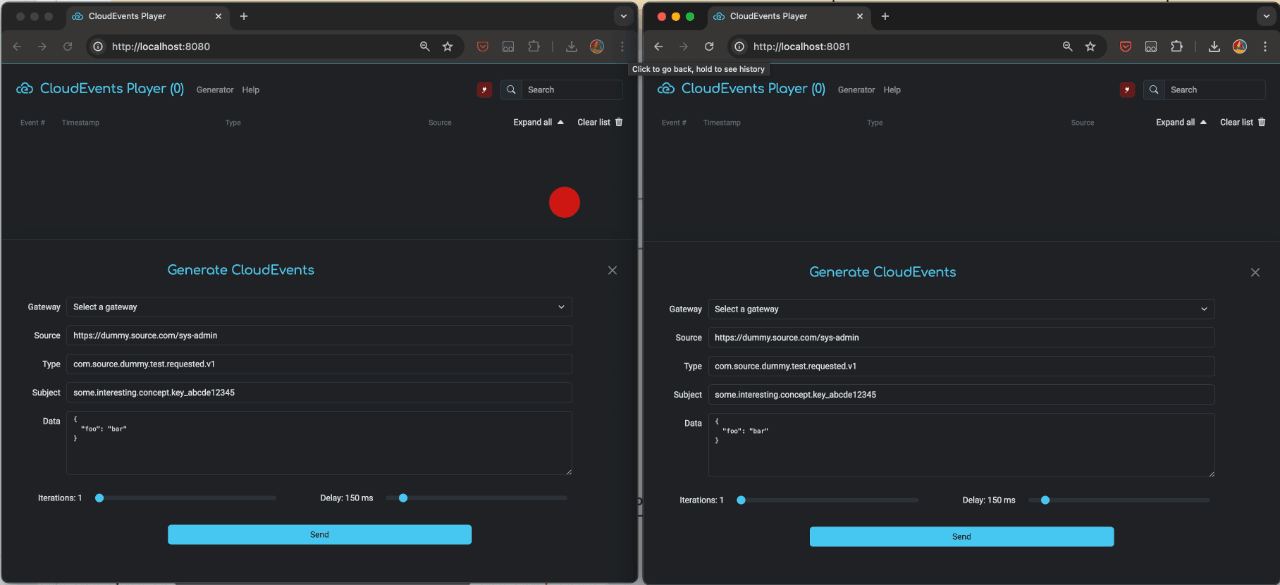

Demo Setup: Two CloudEvent Players monitoring each other's events

graph TB
    Browser[🌐 Browser SSE Client]

    Browser ---|SSE Stream| Player1[CloudEvent Player 1]
    Browser ---|SSE Stream| Player2[CloudEvent Player 2]

    Player1 <-->|Publishes Events| Player2

    style Browser fill:#FFFFFF,stroke:#1A1A1A,stroke-width:2px,color:#1A1A1A
    style Player1 fill:#10aef7,stroke:#1A1A1A,stroke-width:2px,color:#fff
    style Player2 fill:#10aef7,stroke:#1A1A1A,stroke-width:2px,color:#fff

Key Features

🎯 Event Generation

Generate CloudEvents with customizable properties, data payloads, and delivery options. Perfect for testing event-driven architectures without writing code.

  • Built-in Generator UI: Side panel with form for quick event creation
  • Batch Generation: Generate multiple events with configurable delays
  • Background Tasks: Long-running event generation managed by admin controls
  • Custom Gateways: Send events to any HTTP endpoint
  • Form Persistence: Generator settings saved automatically

📡 Real-Time Monitoring

Watch events flow through your system with Server-Sent Events (SSE) streaming. See events as they arrive with syntax-highlighted JSON in a unified dashboard:

  • Unified Dashboard: Single-page view combining all features

  • Streams Tab: Real-time event list with accordion expansion

  • Timeline Tab: Visual Chart.js timeline showing event activity over time
  • Search: Filter events by any text in payload (with persistence)
  • Real-time Metrics: Total events, avg rate, top types/sources
  • Analytics Charts: Top sources, types, subjects (click to filter)

  • Storage Indicators: Two-tier IndexedDB usage visualization

  • Synchronized Filtering: Global filters affect streams, timeline, metrics, and charts

  • Click-to-Filter: Click any source/type/subject in charts to filter all views
  • Time-based Buckets: Configurable timeline granularity (1 sec to 1 hr)

🔍 Event Inspection

Examine CloudEvent structure, validate schemas, and debug data payloads with an intuitive web interface:

  • Expandable Event Cards: Click to view full JSON structure
  • Syntax Highlighting: Easy-to-read JSON with proper formatting
  • Deep Search: Search anywhere in event payload (CloudEvent attributes + data)
  • Advanced Filtering: Filter by type, source, subject, and time range
  • Real-time Counter: Shows filtered vs total events
  • Persistent Search: Search term survives page reloads

🔄 Pub/Sub Support

Acts as both publisher and subscriber, allowing you to test complete event workflows.

🔐 Authentication & Authorization

Authentication is disabled by default - the application works out of the box without any setup.

Enable optional OAuth 2.0/OIDC authentication with role-based access control (RBAC) by setting auth_required=true:

  • Admin, Operator, and User roles with fine-grained permissions
  • Automatic token refresh with OIDC offline_access for uninterrupted sessions
  • Authorization Manager for custom operator permissions
  • Istio/OAuth2 Proxy integration for proxy-based authentication
  • Automatic mode detection - Frontend adapts to deployment environment

When authentication is disabled (auth_required=false, default):

  • All features are immediately accessible
  • No login or configuration required
  • Admin features available via gear icon in navigation

Technical Highlight: The system uses a resilient mode detection pattern where the frontend determines authentication mode from actual authentication state rather than backend configuration. This means it works correctly even with minimal configuration. See the Authentication Guide for details.

See the Authentication Guide for OAuth/OIDC setup details and the RBAC Configuration Guide for a complete step-by-step setup with Keycloak.

💾 Client-Side Storage

Two-tier browser storage architecture for offline capability:

  • IndexedDB: Persistent storage for event history (survives browser restarts)
  • In-Memory Cache: Fast access for current session
  • Storage Management: Clear storage from UI with admin controls

👨‍💼 Admin Features

Admin-only capabilities for operational control:

  • Task Management Modal: View and cancel running event generation tasks
  • Real-time Progress Tracking: Monitor active tasks with progress bars
  • Bulk Operations: Cancel all tasks or individual tasks
  • Audit Logging: All admin actions are logged

🆔 Request Tracing

Built-in Request ID tracing for debugging across distributed systems.

🏥 Health Monitoring

Health check endpoint for integration with monitoring systems and orchestrators.

⌨️ Keyboard Navigation

Full keyboard support for power users:

  • Ctrl/Cmd + K: Focus search
  • Ctrl/Cmd + G: Open event generator
  • Ctrl/Cmd + R: Refresh events
  • Ctrl/Cmd + A: Toggle all event accordions

Use Cases

  • Development: Test event-driven microservices locally
  • Integration Testing: Validate event flows between services
  • Debugging: Inspect CloudEvents in real-time
  • Load Testing: Generate high-volume event streams
  • Documentation: Demonstrate CloudEvents to stakeholders

Quick Start

The easiest way to run CloudEvent Player is using Docker.

# Pull and run the latest image
docker pull ghcr.io/bvandewe/events-player:latest

docker run -d \
--name events-player \
--add-host=host.docker.internal:host-gateway \
-p 8080:8080 \
-e API_LOG_LEVEL=INFO \
-e 'API_DEFAULT_GENERATOR_GATEWAYS={"urls": ["http://host.docker.internal:8080/events/pub"]}' \
ghcr.io/bvandewe/events-player:latest

# Using Docker Compose
git clone https://github.com/bvandewe/events-player
cd events-player
docker-compose up -d

# Access the UI
open http://localhost:8884

Architecture

graph LR
    A[Web UI] --> B[FastAPI Backend]
    B --> C[SSE Stream]
    B --> D[Event Publisher]
    B --> E[Event Subscriber]
    D --> F[CloudEvent Gateway]
    G[External Systems] --> E
    C --> A

Technology Stack

  • Backend: Python 3.10+ with FastAPI
  • Frontend: Vanilla JavaScript with Bootstrap 5
  • Streaming: Server-Sent Events (SSE)
  • Event Format: CloudEvents v1.0 specification
  • Containerization: Docker with multi-stage builds

CloudEvents Compliance

CloudEvent Player implements the CloudEvents v1.0 specification, supporting:

  • ✅ Required attributes (specversion, id, source, type)
  • ✅ Optional attributes (datacontenttype, subject, time)
  • ✅ JSON format with proper type handling
  • ✅ Content-Type validation
  • ✅ Structured content mode

Getting Started

Choose your deployment method:

Documentation Structure

Community & Support

License

MIT License

Ready to start? Head to the Installation Guide or jump to the Quick Start!
